DEPOSE
MESURE DE PRECAUTION/REMARQUE/CONSEIL
ATTENTION:
Porter des gants de protection. Les zones pointues des pièces peuvent blesser les mains.
MESURE DE PRECAUTION / REMARQUE / CONSEIL

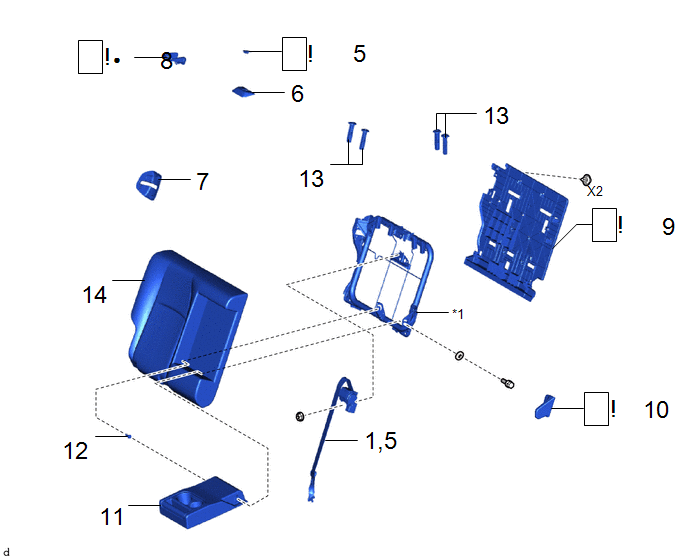

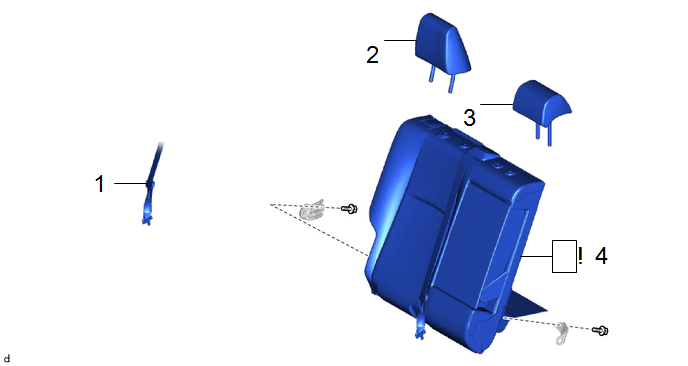

PIECES CONSTITUTIVES (DEPOSE)
|
Procédure | N° de référence |
|
|
| |
|---|---|---|---|---|---|
|
1 | DEBRANCHER L'ENSEMBLE DE SANGLE EXTERIEURE DE CEINTURE DE SECURITE CENTRALE ARRIERE |
73350C | - |
- | - |
|
2 | ENSEMBLE D'APPUIE-TETE DE SIEGE ARRIERE |
71940A | - |
- | - |
|
3 | ENSEMBLE D'APPUIE-TETE CENTRAL DE SIEGE ARRIERE |
71960B | - |
- | - |
|
4 | ENSEMBLE DE DOSSIER DE SIEGE ARRIERE DROIT |
- |
|
- | - |
|
Procédure | N° de référence |
|
|
| |
|---|---|---|---|---|---|
|
5 | BOUCHON DE CACHE D'ANCRAGE DE CEINTURE DE SECURITE |
73178A |
|
- | - |
|
6 | CACHE DE CEINTURE DIAGONALE DU SIEGE ARRIERE |
73373 | - |
- | - |
|
7 | GARNITURE INFERIEURE DE VERROUILLAGE DE DOSSIER DE SIEGE ARRIERE DROIT |
72668E | - |
- | - |
|
8 | GARNITURE DE VERROUILLAGE SUPERIEUR DE DOSSIER DE SIEGE ARRIERE |
72667 |
|
- | - |
|
9 | SOUS-ENSEMBLE DE PANNEAU DE DOSSIER DE SIEGE ARRIERE |
71701C |
|
- | - |
|
10 | CACHE DE CHARNIERE D'ACCOUDOIR CENTRAL |
72868B |
|
- | - |
|
11 | ENSEMBLE D'ACCOUDOIR CENTRAL DE SIEGE ARRIERE |
72830 | - |
- | - |
|
12 | CALE DE CHARNIERE D'ACCOUDOIR DE SIEGE ARRIERE |
72839 | - |
- | - |
|
13 | SUPPORT D'APPUIE-TETE DE SIEGE ARRIERE |
71931 | - |
- | - |
|
14 | HOUSSE DE DOSSIER DE SIEGE ARRIERE DE TYPE SEPARE AVEC REMBOURRAGE |
- | - |
- | - |
|
1,5 | DEPOSER L'ENSEMBLE DE CEINTURE DE SECURITE EXTERIEURE CENTRALE ARRIERE |
73350C | - |
- | - |
|
*1 | SOUS-ENSEMBLE D'ARMATURE DE DOSSIER DE SIEGE ARRIERE DROIT |
- | - |
|
● | Pièce non réutilisable |
- | - |
PROCÉDURE
1. DEBRANCHER L'ENSEMBLE DE SANGLE EXTERIEURE DE CEINTURE DE SECURITE CENTRALE ARRIERE
Cliquer ici
2. DEPOSER L'ENSEMBLE D'APPUIE-TETE DE SIEGE ARRIERE (pour côté droit)
Cliquer ici
3. DEPOSER L'ENSEMBLE D'APPUIE-TETE CENTRAL DE SIEGE ARRIERE (pour côté droit)
Cliquer ici
4. DEPOSER L'ENSEMBLE DE DOSSIER DE SIEGE ARRIERE DROIT
Cliquer ici
5. DEPOSER LE BOUCHON DE CACHE D'ANCRAGE DE CEINTURE DE SECURITE
|
Cliquer ici |
6. DEPOSER LE CACHE DE SANGLE DIAGONALE DU SIEGE ARRIERE
Cliquer ici
7. DEPOSER LA GARNITURE INFERIEURE DE VERROUILLAGE DE DOSSIER DE SIEGE ARRIERE DROIT
|
Cliquer ici |
8. DEPOSER LA GARNITURE SUPERIEURE DE VERROUILLAGE DE DOSSIER DE SIEGE ARRIERE
|
Cliquer ici |
9. DEPOSER LE SOUS-ENSEMBLE DE PANNEAU DE DOSSIER DE SIEGE ARRIERE DROIT
|
Cliquer ici |
10. DEPOSER LE CACHE DE CHARNIERE D'ACCOUDOIR CENTRAL
|
Cliquer ici |
11. DEPOSER L'ENSEMBLE D'ACCOUDOIR CENTRAL DE SIEGE ARRIERE
|
Cliquer ici |
12. DEPOSER LA CALE DE CHARNIERE D'ACCOUDOIR DE SIEGE ARRIERE
Cliquer ici
13. DEPOSER LE SUPPORT D'APPUIE-TETE DE SIEGE ARRIERE
Cliquer ici
14. DEPOSER LA HOUSSE DE DOSSIER DE SIEGE ARRIERE DE TYPE SEPARE AVEC REMBOURRAGE
Cliquer ici

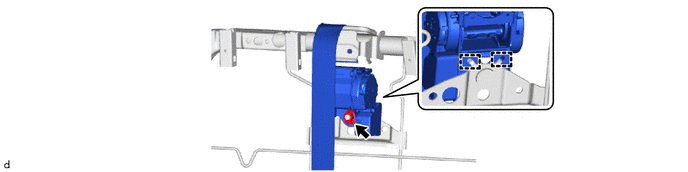

15. DEPOSER L'ENSEMBLE DE CEINTURE DE SECURITE EXTERIEURE CENTRALE ARRIERE
