DEPOSE
MESURE DE PRECAUTION / REMARQUE / CONSEIL
CONSEIL:
MESURE DE PRECAUTION / REMARQUE / CONSEIL

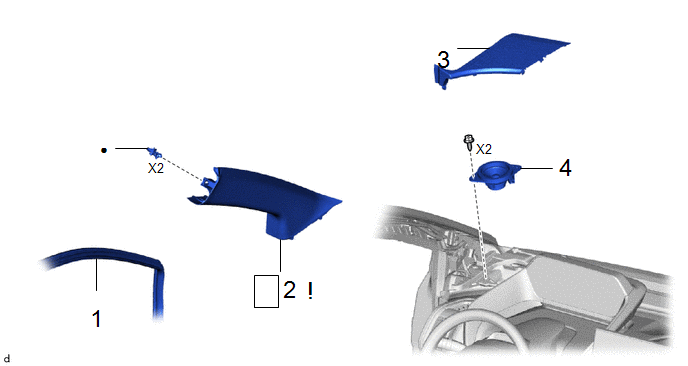

PIECES CONSTITUTIVES (DEPOSE)
|
Procédure | N° de référence |
|
|
| |
|---|---|---|---|---|---|
|
1 | BOURRELET D'ETANCHEITE D'OUVERTURE DE PORTE AVANT |
62312B | - |
- | - |
|
2 | ENSEMBLE DE GARNISSAGE DE MONTANT AVANT |
62212B |
|
- | - |
|
3 | PANNEAU DE HAUT-PARLEUR DE TABLEAU DE BORD N° 1 |
55472C | - |
- | - |
|
4 | ENSEMBLE DE HAUT-PARLEUR AVANT N° 2 |
86160P | - |
- | - |
|
● | Pièce non réutilisable |
- | - |
PROCÉDURE
1. DEBRANCHER LE BOURRELET D'ETANCHEITE D'OUVERTURE DE PORTE AVANT
Cliquer ici
2. DEPOSER L'ENSEMBLE DE GARNISSAGE DE MONTANT AVANT
|
Cliquer ici |
3. DEPOSER LE PANNEAU DE HAUT-PARLEUR DE TABLEAU DE BORD N° 1
Cliquer ici

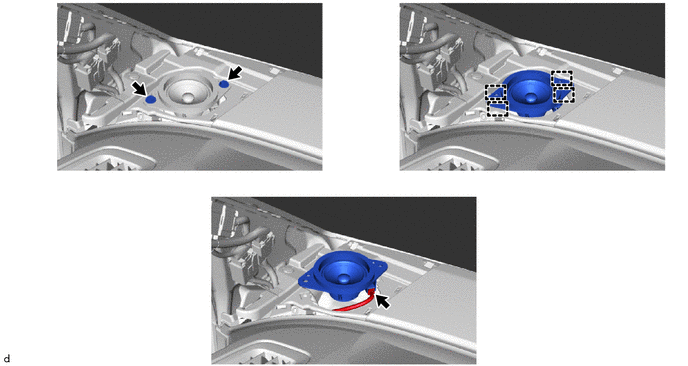

4. DEPOSER L'ENSEMBLE DE HAUT-PARLEUR AVANT N° 2

VerificationData List/active Test
DATA LIST/ACTIVE TEST DATA LIST REMARQUE:
Dans le tableau ci-dessous, les valeurs reprises sous "Conditions normales" sont des valeurs de référence. Ne pas se baser uniquement sur ces valeurs de référence pour déterminer si une pièce est défectueuse ou non. Body Electrical > Clearance Wa ...
Emplacement Des Pieces
EMPLACEMENT DES PIECES SCHEMA
*1 ENSEMBLE DE CONTACTEUR PRINCIPAL DE RESEAU MULTIPLEX
*2 ENSEMBLE DE CONTACTEUR DE LEVE-VITRE ELECTRIQUE
*3 ENSEMBLE DE CONTACTEUR DE LEVE-VITRE ELECTRIQUE ARRIERE (pour porte arrière gauche)
*4 ENSEMBLE DE CONTACTEUR DE LEVE-VIT ...
Le chauffage du siège avant gauche ne fonctionne pas
DESCRIPTION Lorsque le contacteur de chauffage de siège avant (ensemble de commande de climatisation) est actionné, l'ensemble d'amplificateur de climatisation reçoit un signal et actionne le chauffage de siège avant. SCHEMA DE CABLAGE
MESURE DE PRECAUTION / REMARQUE / CONSEIL
REMARQUE:
...
